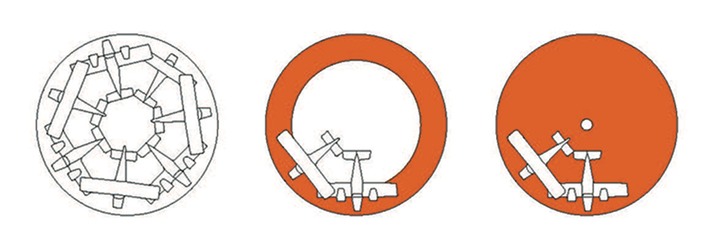

     * Fully automated industrial turntable with Carousel Ring or Carousel Disc Systems.

     * Standard Types in 20m, 24m, 27m, 32m, 44m, 50m up to 66m Diameter

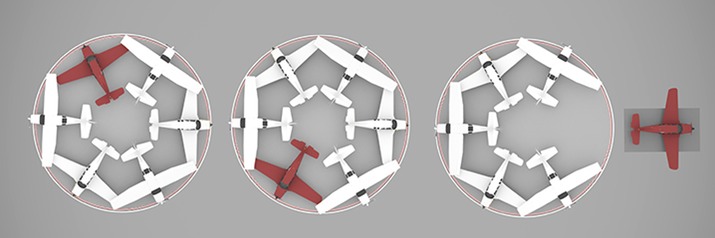

     * For General Aviation fits 6 to 9 single or twin engine aircraft up to 6t take-off weight

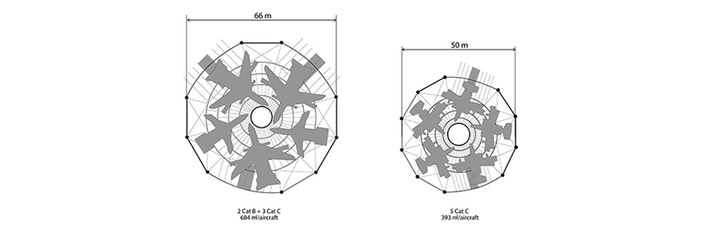

     * For Business Jets fits 3 to 5 Business Jets Cat A and B up to 22t take-off weight

     * Construction height: from 20cm integration into existing hangar possible

     * Ultra-strong, resilient loads brought directly down through the turning platform into the foundation

     * Fully mechanized with upper or underground motors and centre bearing disc
