Rotating Aircraft Carousel | Ring System

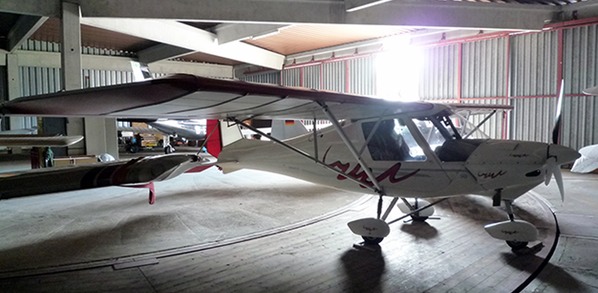

Schaetz Ring EggenfeldenSchaetz-Aircraft-Ring-ParkingInstallation-Hangar-Carousel-RingAircraft-Parking-Ring-SystemAircraft-Palette-SystemAircraft-Parking-Ring-System_cat8Ring-System-Cat-07

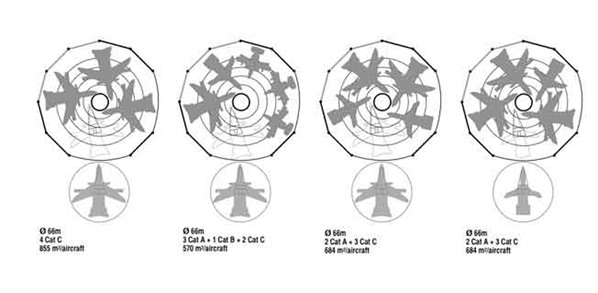

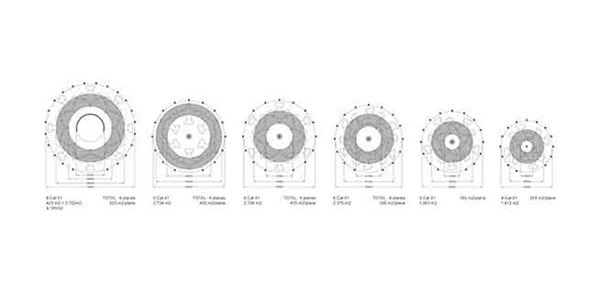

* Diameter outer ring 22m, 24m, 27m, 32m, 37m, 54m and 66m

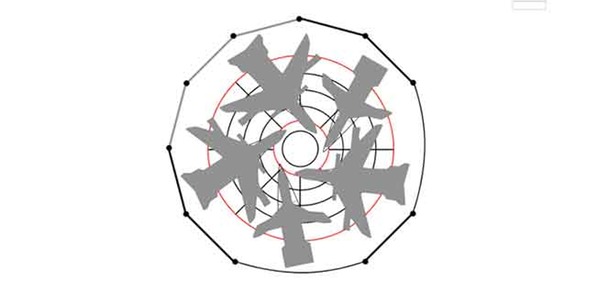

* For 6 - 9 one or twin engine aircraft and business jets with up to 13tons take-off weight

* Refurbishment of existing hangar with only 20cm construction height

* 3x 3kw electro engine subsurface

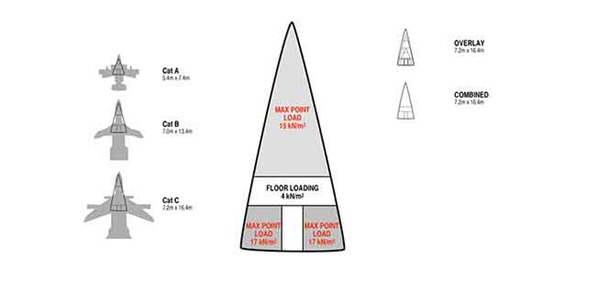

* Heavy weight loads brought directly down via palettes and track system.

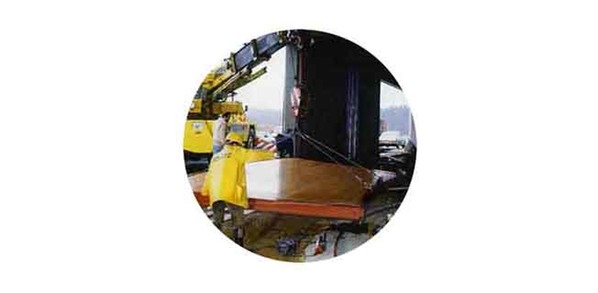

* Fast and easy installation

* Type CR 2215 – CR 2417 – CR 2717 – CS 3200 - CS 3715 - CS 5560 - CS 6780
